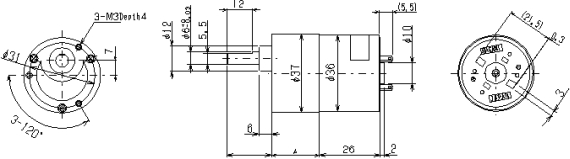

S-3626AA-24
 |
 |
|---|
| Type | Gear Ratio | A Length | Rated Torque | Speed (rpm) | Current (Max A) | Characteristics | |
|---|---|---|---|---|---|---|---|
| N ･ m | kgf ･ cm | ||||||
| S-3626AA-24 M0-10 |
1/10 | 20 | 0.029 | 0.3 | 417 | 0.16 | Characteristics |
| S-3626AA-24 M0-18.6 |
1/18.6 | 22.5 | 0.049 | 0.5 | 230 | 0.15 | Characteristics |
| S-3626AA-24 M0-20 |
1/20 | 22.5 | 0.049 | 0.5 | 216 | 0.15 | Characteristics |
| S-3626AA-24 M0-25 |
1/25 | 22.5 | 0.078 | 0.8 | 163 | 0.17 | Characteristics |
| S-3626AA-24 M0-30 |
1/30 | 22.5 | 0.078 | 0.8 | 142 | 0.15 | Characteristics |
| S-3626AA-24 M0-36 |
1/36 | 25 | 0.098 | 1.0 | 117 | 0.16 | Characteristics |
| S-3626AA-24 M0-60 |
1/60 | 25 | 0.196 | 2.0 | 65 | 0.2 | Characteristics |
| S-3626AA-24 M0-75 |
1/75 | 25 | 0.196 | 2.0 | 55 | 0.16 | Characteristics |
| S-3626AA-24 M0-100 |
1/100 | 25 | 0.294 | 3.0 | 42 | 0.18 | Characteristics |
| S-3626AA-24 M0-150 |
1/150 | 27.5 | 0.392 | 4.0 | 27 | 0.17 | Characteristics |
| S-3626AA-24 M0-200 |
1/200 | 27.5 | 0.49 | 5.0 | 20 | 0.17 | Characteristics |
| S-3626AA-24 M0-300 |
1/300 | 27.5 | 0.49 | 5.0 | 14 | 0.13 | Characteristics |
